TThe 100×60mm Seamless Linkable LED Linear Light is a premium aluminum profile lighting solution designed for modern construction projects such as garages, workshops, warehouses, and commercial interiors. With a tool-free, bridge-free splicing mechanism, this modular LED fixture ensures fast installation, seamless appearance, and uniform brightness with no shadowing. Perfect for large-scale lighting systems that demand both performance and aesthetics.

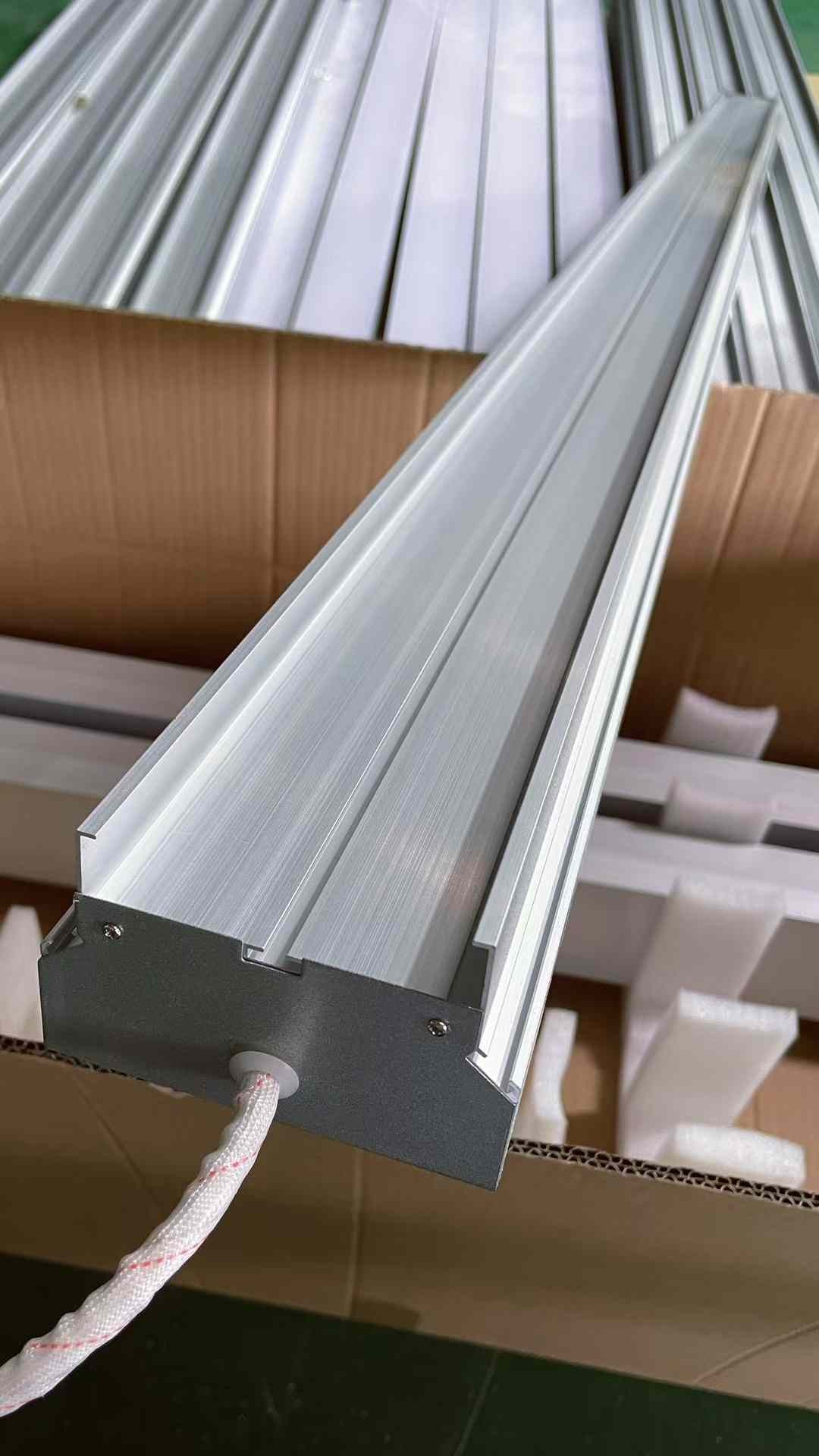

100*60mm Seamless Splicing Linkable LED Linear Aluminum Profile for New Construction Garage Project 10061

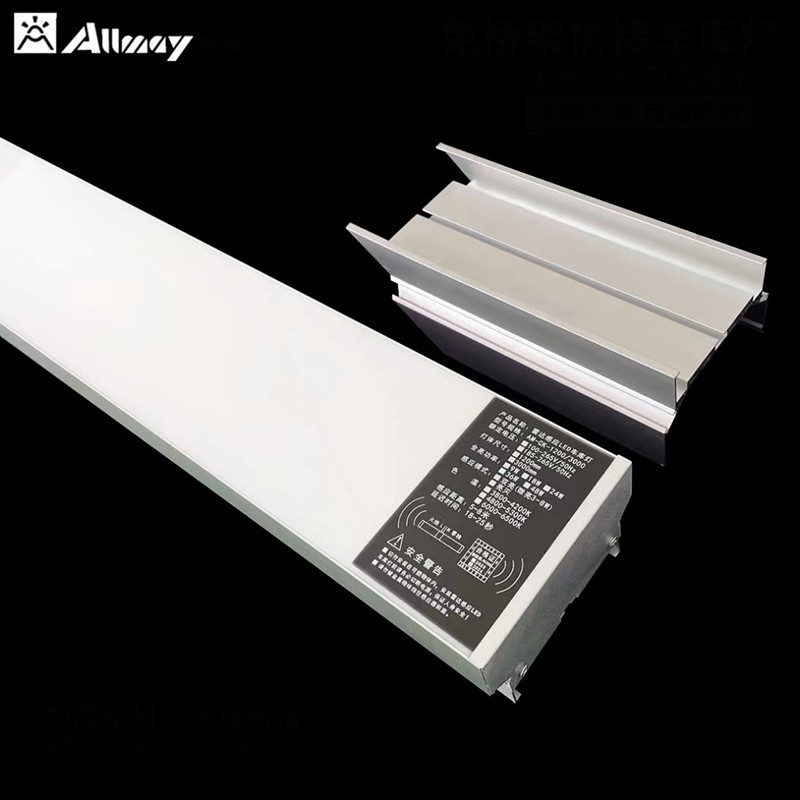

1. High-Quality Aluminum Trunking Light
This 2-in-1 trunking light features high-quality aluminum with rapid heat dissipation, a wide light panel for uniform illumination, and easy on-site assembly. Suitable for suspension, rod, conduit, or ceiling installation.

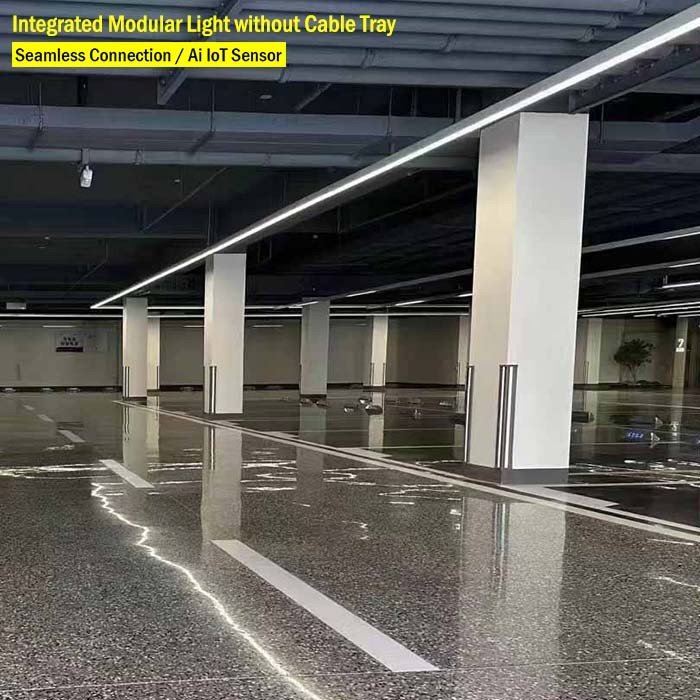

2. Seamless Linear Lighting for Parking Garages

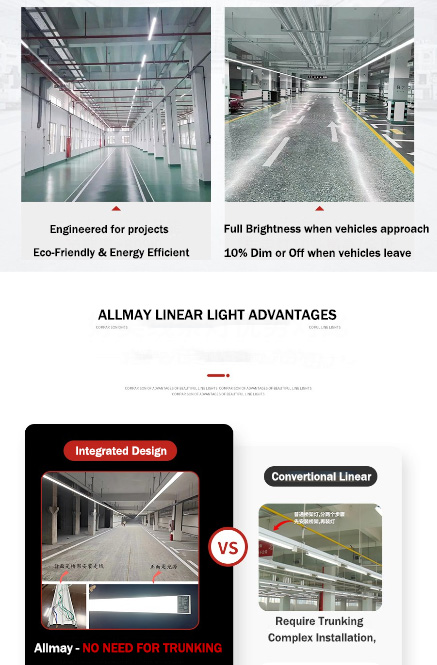

Perfect for underground parking garages, this line of seamless lights offers endless connectivity. With smart IoT APP remote control, it automatically brightens when vehicles arrive and dims when they leave, achieving over 80% energy savings.
3. Customizable, Seamless Design
Supports custom lengths with seamless connections. Compared to traditional “tube + cable tray” solutions, it saves 100% on cable trays, branch wiring, insulation, and fixing materials, plus reduces labor costs by 70%.
4. Energy-Efficient Lighting Solution
Combines lighting and cabling in one sleek design, eliminating dark areas. With no cable trays or additional wiring required, this aesthetic and energy-efficient solution ensures even, consistent lighting throughout large spaces.
Data sheet for 100*60mm Seamless Splicing Linkable LED Linear Aluminum Profile | |
|---|---|
| Item No | AM-H10061 |
| Voltage | 185-265Vac, 50-60Hz |

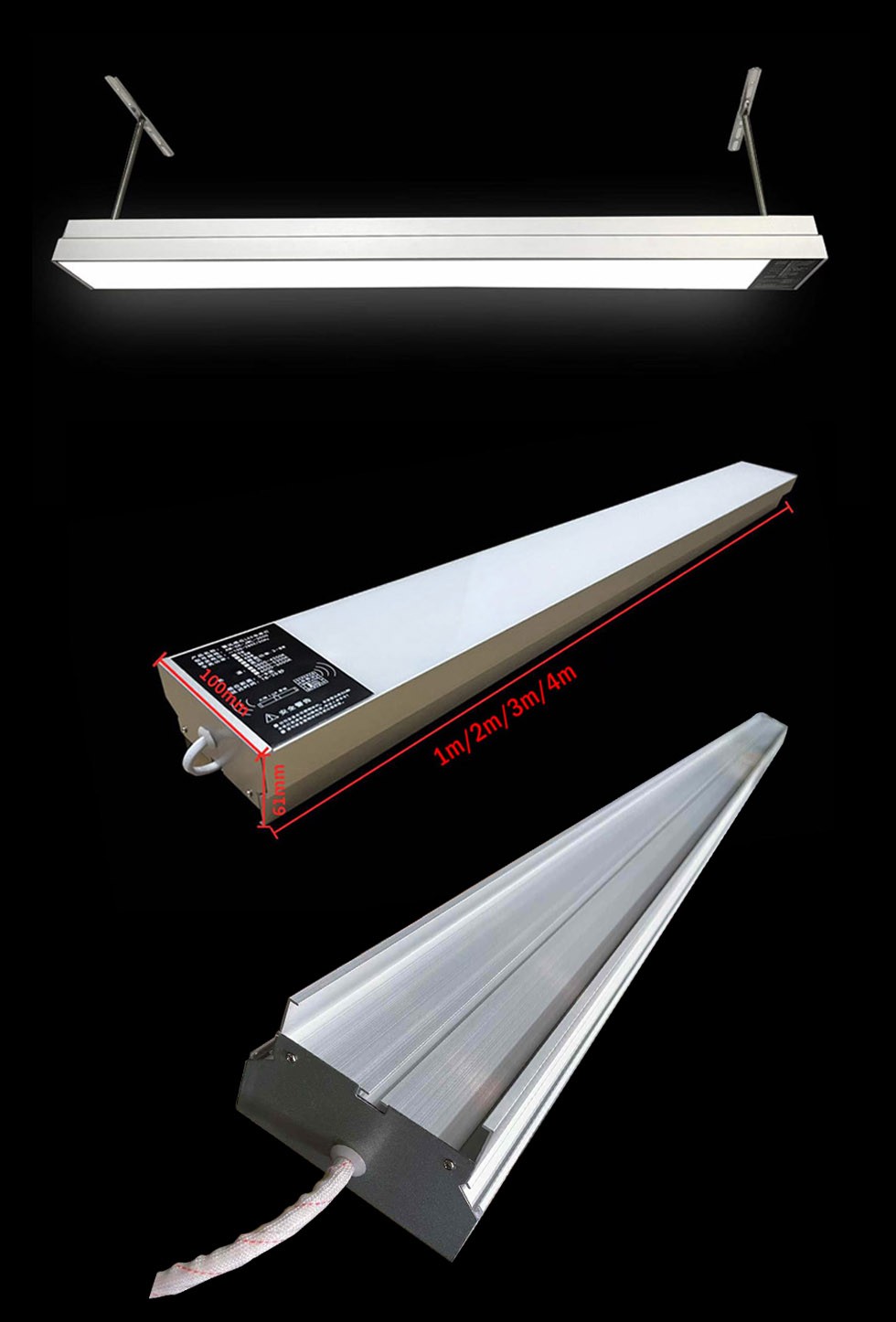

| Size(Length can be linkable) | N*100*60mm (N*3.74"*1.18") |
| Rated Power | 18W (1 meter) / 36W (2 meters) / 60W (3 meters) |
| Optional Working Mode | Option 1: Standard continuous Option 2: Intelligent Motion Sensor Option 3: AI IoT APP Control |
Color Temperature | 2700K / 4000K / 6500K |

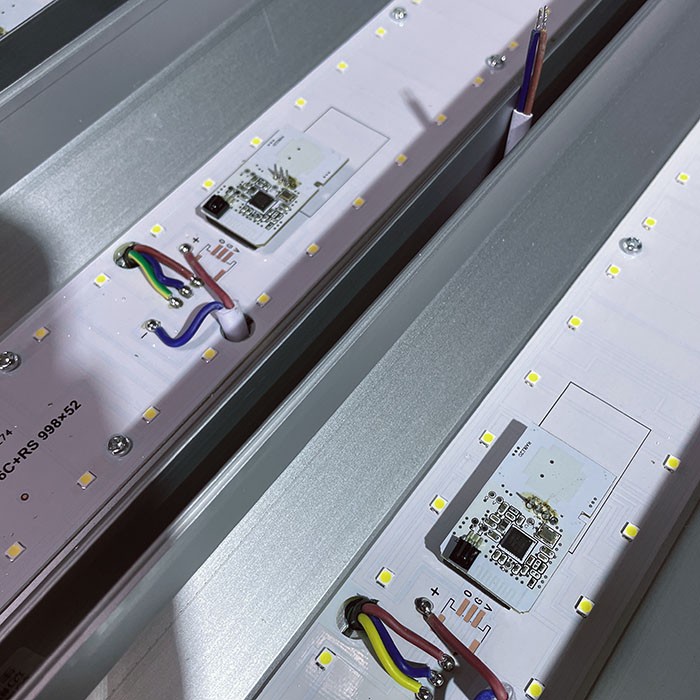

| LED Array / M | 6 Parelles 16 Series, 96pcs * SMD2835. 998*52mm |
Lumen efficiency | >70lm/W ( for higher lumen, Pls check with sales) |
| Installation Method | 3000K/4000K/6000K |
Power factor | 0.5 (sensor) / 0.9 （standard) |
| Beam angle | 120 degree |

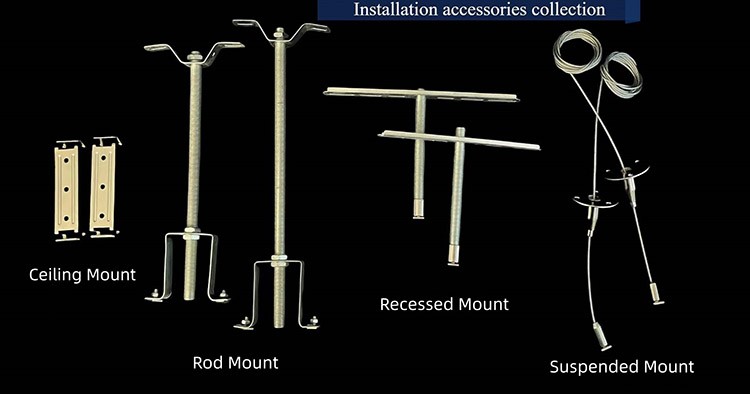

| Installation Method | Ceiling / Rod / Suspended/ Recessed Mounted |
| Lifespan | >25000hours |
| Material | Die-casting Aluminum & PMMA Cover |
| Sensor Data | |
| Sensor principle | HF Microwave |
| Operation frequency | 5.8GHz |
| Transmission power | <0.2mW |
| Detection range | 8m*6m ( diamater*H) |
| Hold time | 15±5s ( 30s/45s/60s/2mins optional ) |
Sensor mode (2 Steps) | Option 1: Full to Off (100%-off) Option 2: Full to Dim (100%-20%) |
| Application | Carpark, parking lot, basement, corridor, warehouse, storage room. |
