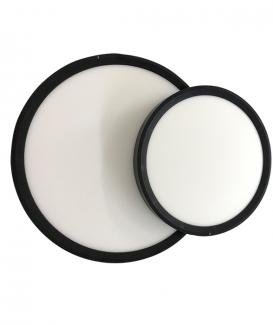

12inch Dia 30cm 24mm Thickness Black IP44 Ultra Slim Flat LED Surface Light with Inbuilt Smart Microwave Motion Sensor
a perfect combination of style and functionality. This advanced lighting solution is designed to revolutionize your space with its sleek design and intelligent motion detection capabilities.
12inch Dia30cm 24mm Thickness IP44 Ultra Slim Flat LED Surface Light with Inbuilt Smart Microwave Motion Sensor

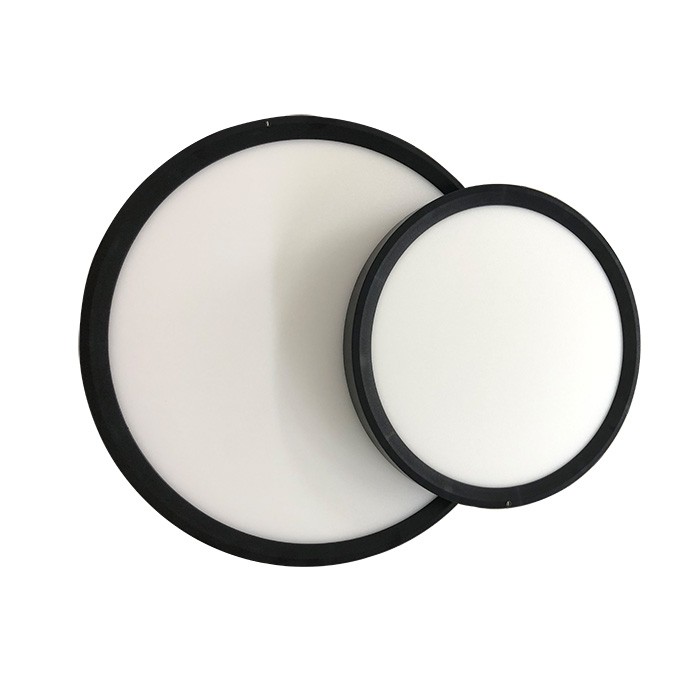

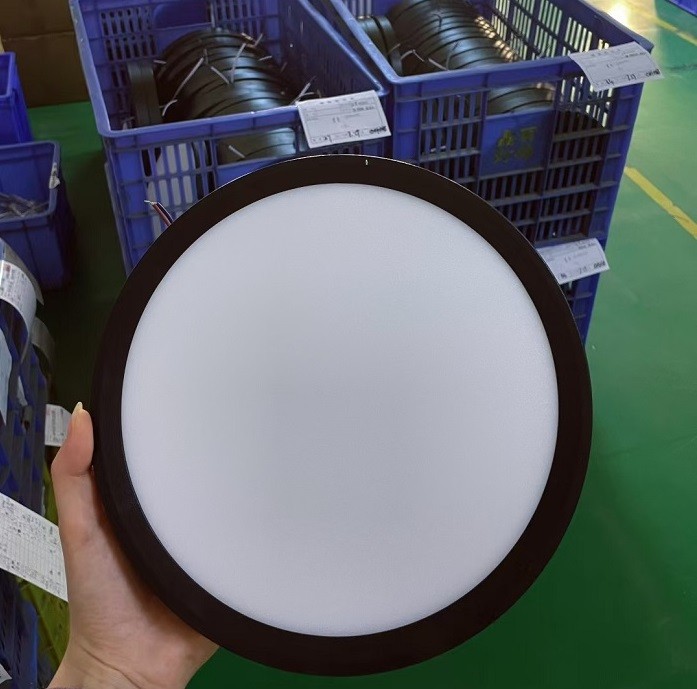

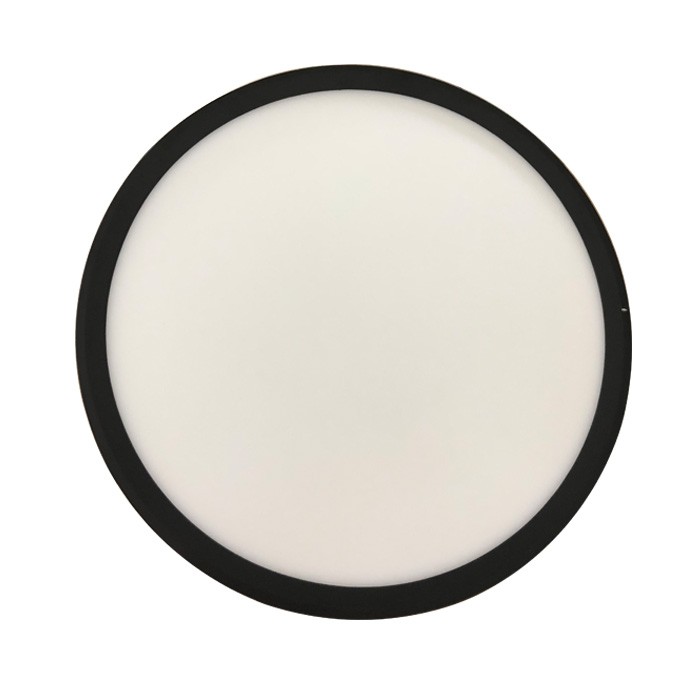

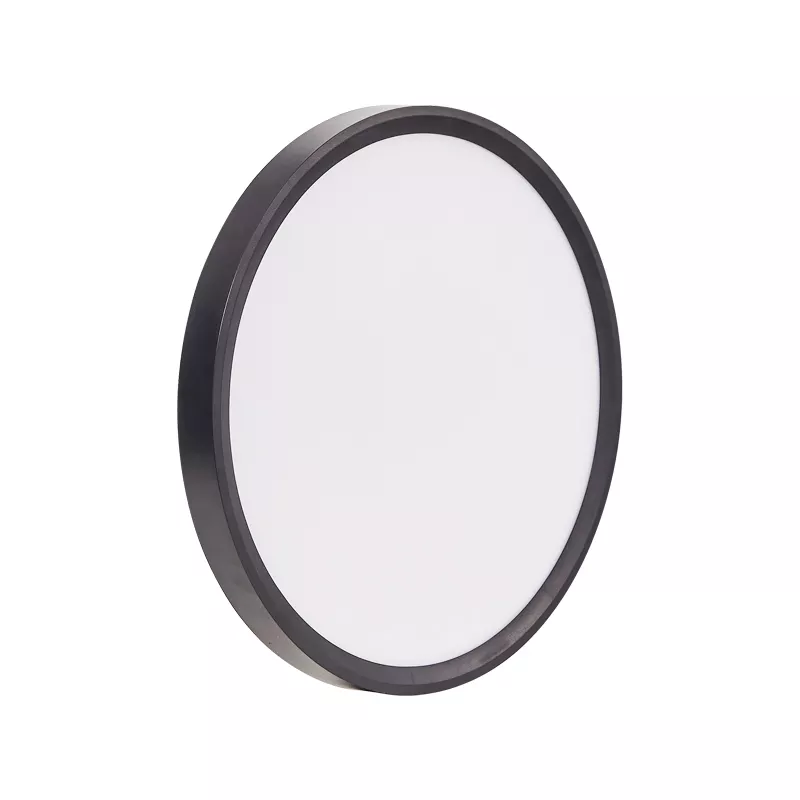

The 12inch (30cm) Ultra Slim Flat LED Surface Light combines modern design with smart functionality. With a thickness of only 24mm, this sleek luminaire offers a minimalist appearance while delivering bright, uniform illumination. Equipped with an inbuilt smart microwave motion sensor, the light ensures hands-free operation, automatically switching on when movement is detected and off when the area is unoccupied—enhancing both energy savings and convenience. With IP44 protection, it is ideal for residential, commercial, and semi-outdoor applications such as hallways, stairwells, balconies, kitchens, and bathrooms.
Product Features:

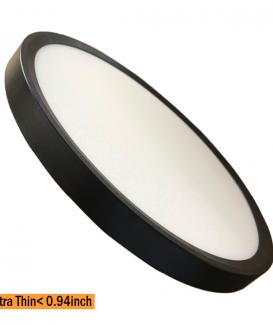

Ultra Slim Design: Only 24mm thickness for a stylish, modern look.
Large Size: 12inch (30cm diameter) for wide and uniform light distribution.
Smart Microwave Sensor: Detects movement with high sensitivity, ensuring automatic ON/OFF control.
Energy Saving: Reduces power consumption by activating only when needed.
IP44 Rated: Dustproof and splash-proof, suitable for damp areas.
Easy Installation: Surface-mounted design for fast and simple setup.
Versatile Applications: Perfect for hallways, staircases, corridors, balconies, kitchens, bathrooms, and other indoor spaces.
| Data sheet for Ultra slim led ceiling light with microwave sensor | ||
|---|---|---|
| Item No | AM-US230XD12 | AM-US300XD18 |
| Voltage | 185-265Vac / 85-265Vac | 185-265Vac / 85-265Vac |
| Size | Dia 230*22mm | Dia 300*22mm |
| Power consumption | <0.5W | <0.5W |
| Rated power | 12W | 18W |
| LED Qty | 72pcs*SMD2835 | 96pcs*SMD2835 |
Lumen efficiency | >90lm/W | >90lm/W |
| CCT | 3000K/4000K/6000K | 3000K/4000K/6000K |
Power factor | 0.5 or 0.9 | 0.5 or 0.9 |
| Beam angle | 150 degree | 150 degree |
| CRI | Ra 80 | Ra 80 |
| IP Rating | IP42 | IP42 |
| Sensor Data | ||
| Sensor principle | HF Microwave | |
| Operation frequency | 3.3GHz | |
| Transmission power | <0.2mW | |
| Detection range | 8m*6m ( diamater*H) | |
| Hold time | 15±5s ( 30s/45s/60s/2mins optional ) | |
Sensor mode (2&3 Steps ) | Option 1: Full to Off (100%-off) Option 2: Full to Dim (100%-20% standby) | |
| Application | Carpark, parking lot, basement, corridor, warehouse, storage room. | |
Customer Questions & Answers
Sensor type A: ON/OFF Mode (100% On-0% Off)
When detect movement lighting, Light turn on at 100% brightness,
No movement, stand by status light off (0%)
Sensor type B: Full/Dim Mode (100% on~20% standy)
When detect movement lighting, Light turn on at 100% Brightness,
No movement, stand by status lighting turn to 20% (2-3 watt)
Sensor type C: Full/Dim/off Mode (100% On~Standby-Off)
When detect movement lighting, Light turn on at 100% Brightness,
No movement 20s (to be customized), stand by status lighting turn to 20% (to be customized)
After No movement 1min (cutominzed), Light turns off automatically.
